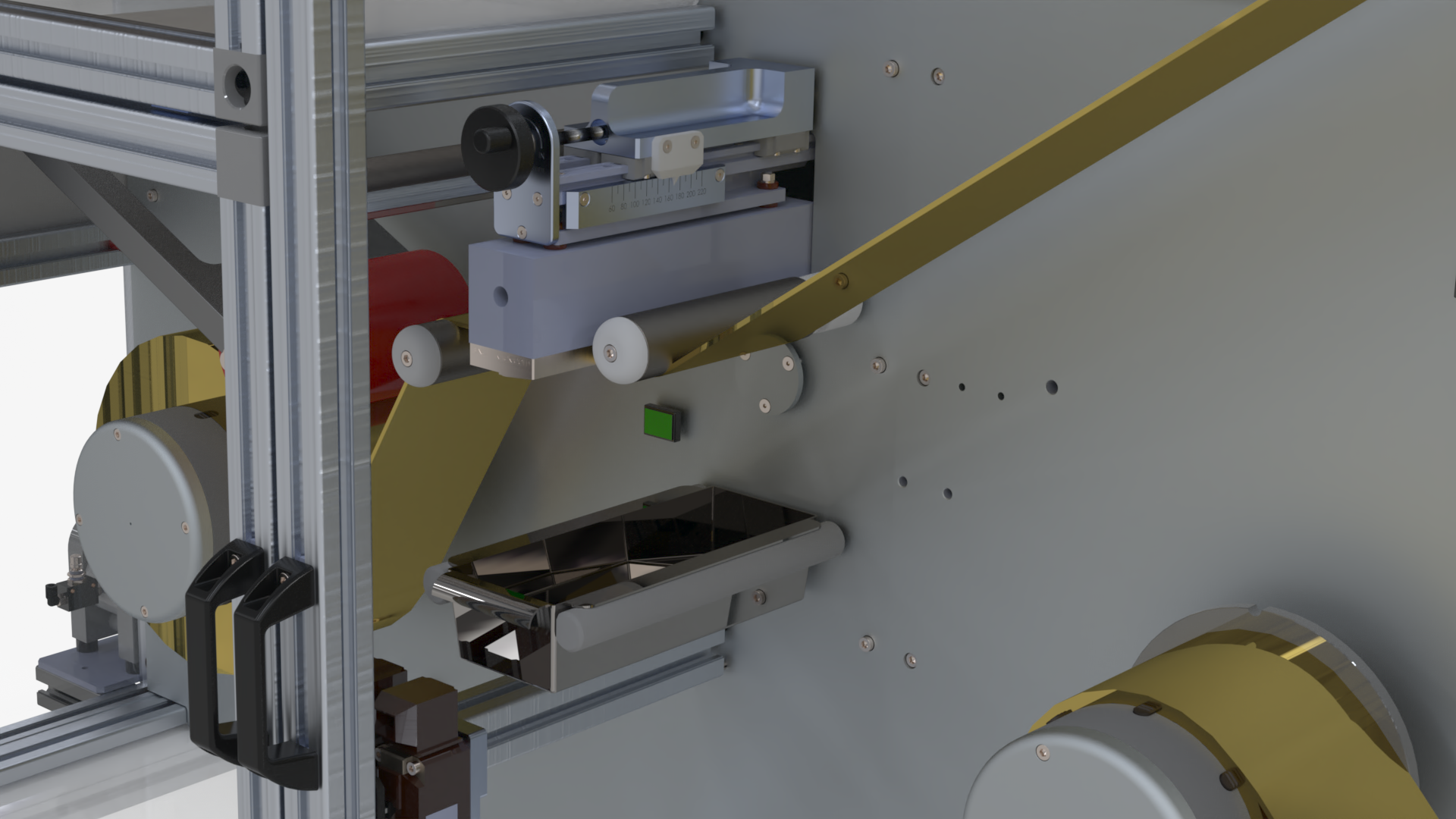

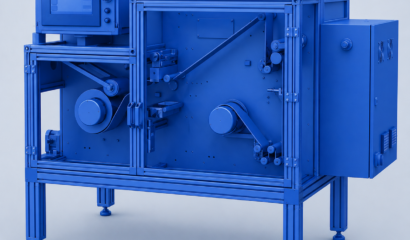

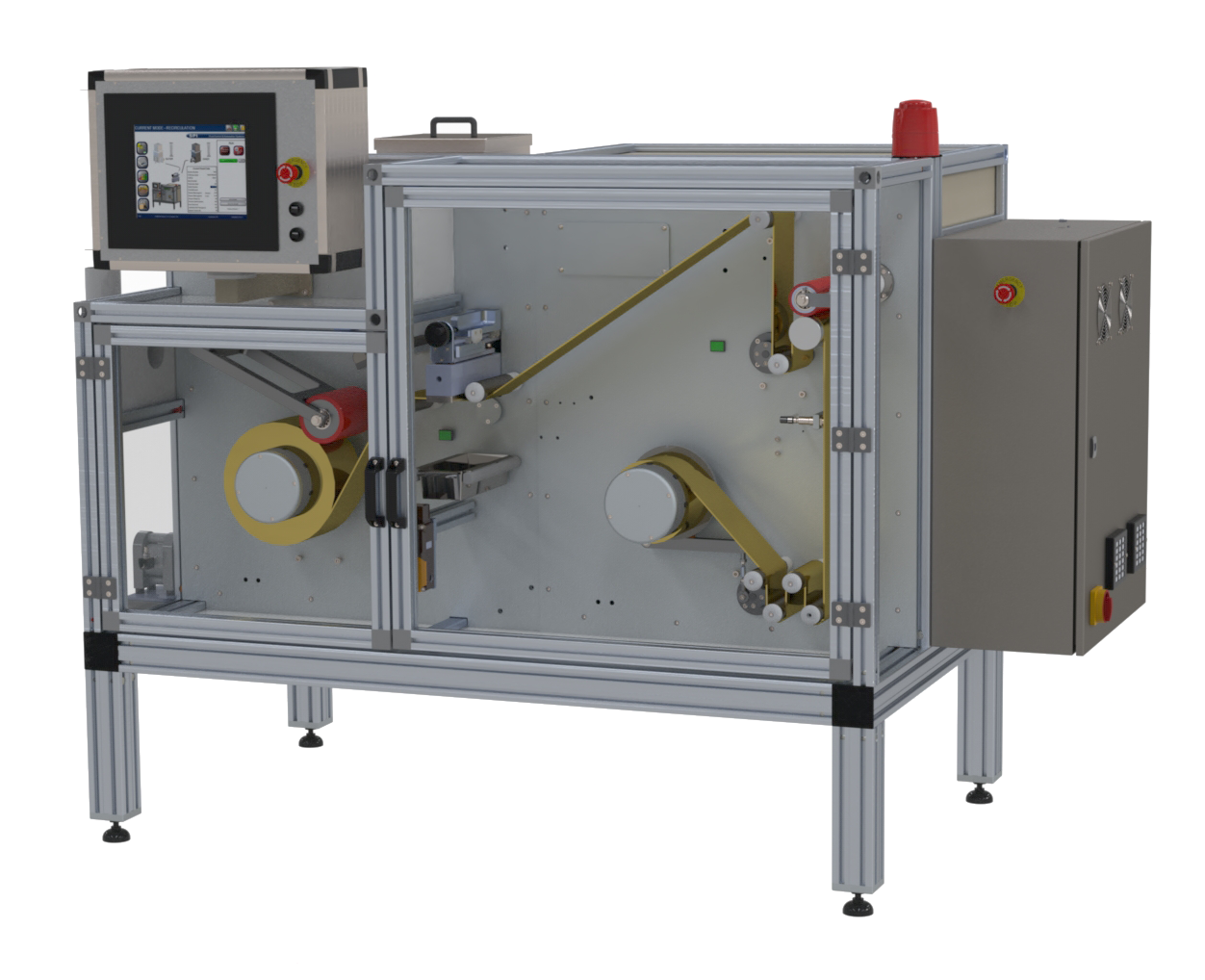

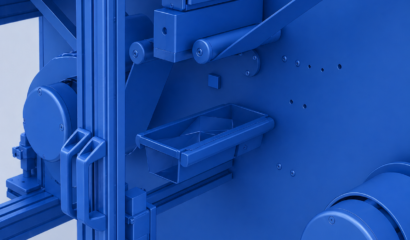

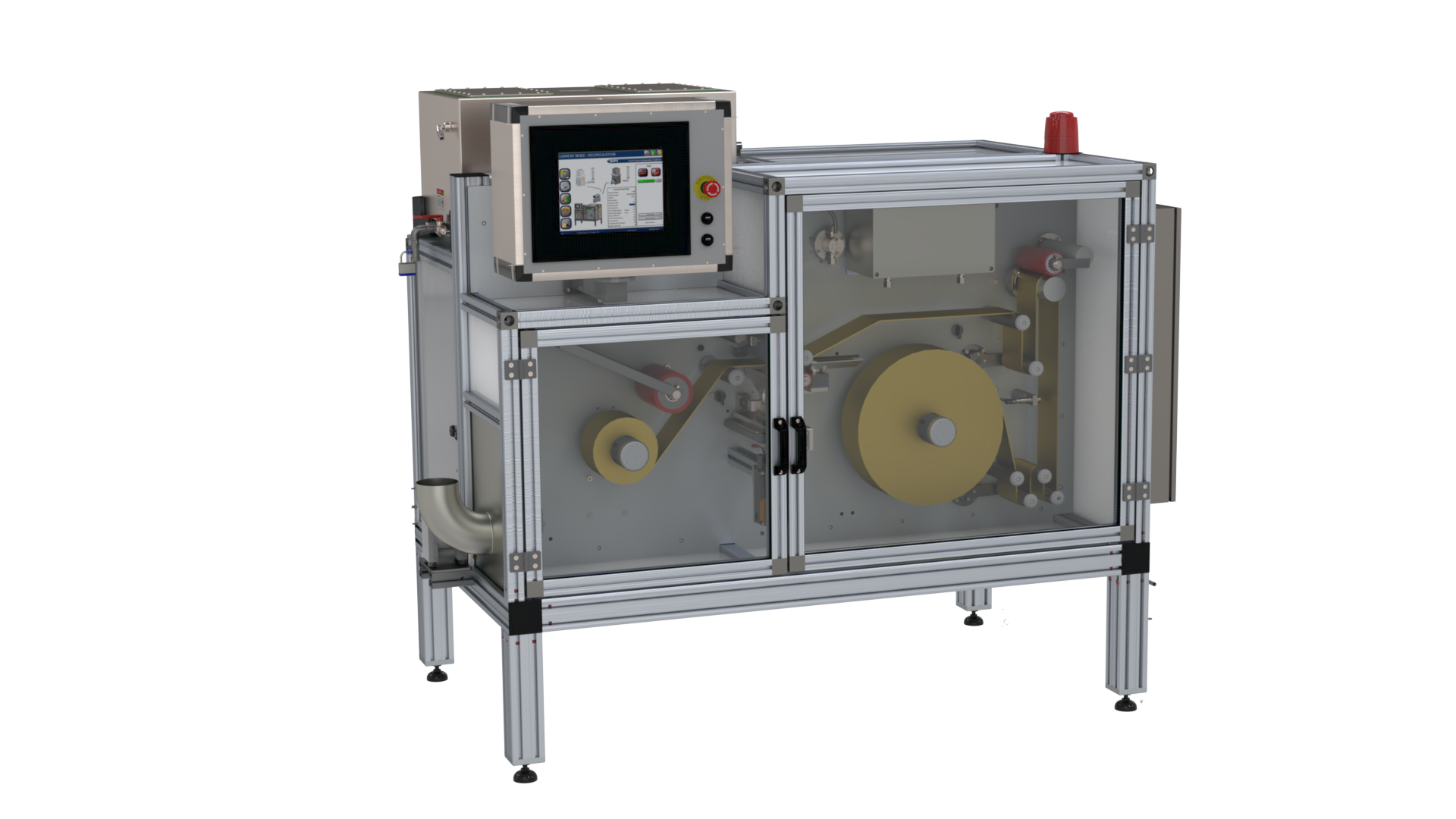

I-RWM Intelligent Rewind Mentholator System

The I-RWM unwinds aluminium foil reels, applies controlled doses of flavour to the tissue side, and rewinds into finished reels. This self-contained unit runs automatically and has a simple user interface allowing adjustments to all necessary parameters, including speed, tension, flavour loading.

An intuitive interface enables adjustment of speed, tension, and flavour per metre, while the display supports quality monitoring, and full data collection for each bobbin, ensuring efficient production

Perfect for:

  • Food-Packaging icon

    Food Packaging

  • Cigarettes icon

    Cigarettes

    Core features

    Our rewind mentholator system supports open or closed loop control, high accuracy and fast, consistent application for reliable production performance.

    Get a quote

    Open or Closed Loop Control icon

    Open or Closed Loop Control

    Microprocessor control system, with options for open or closed loop control of fluid delivery

    High Accuracy Application

    High Accuracy Application

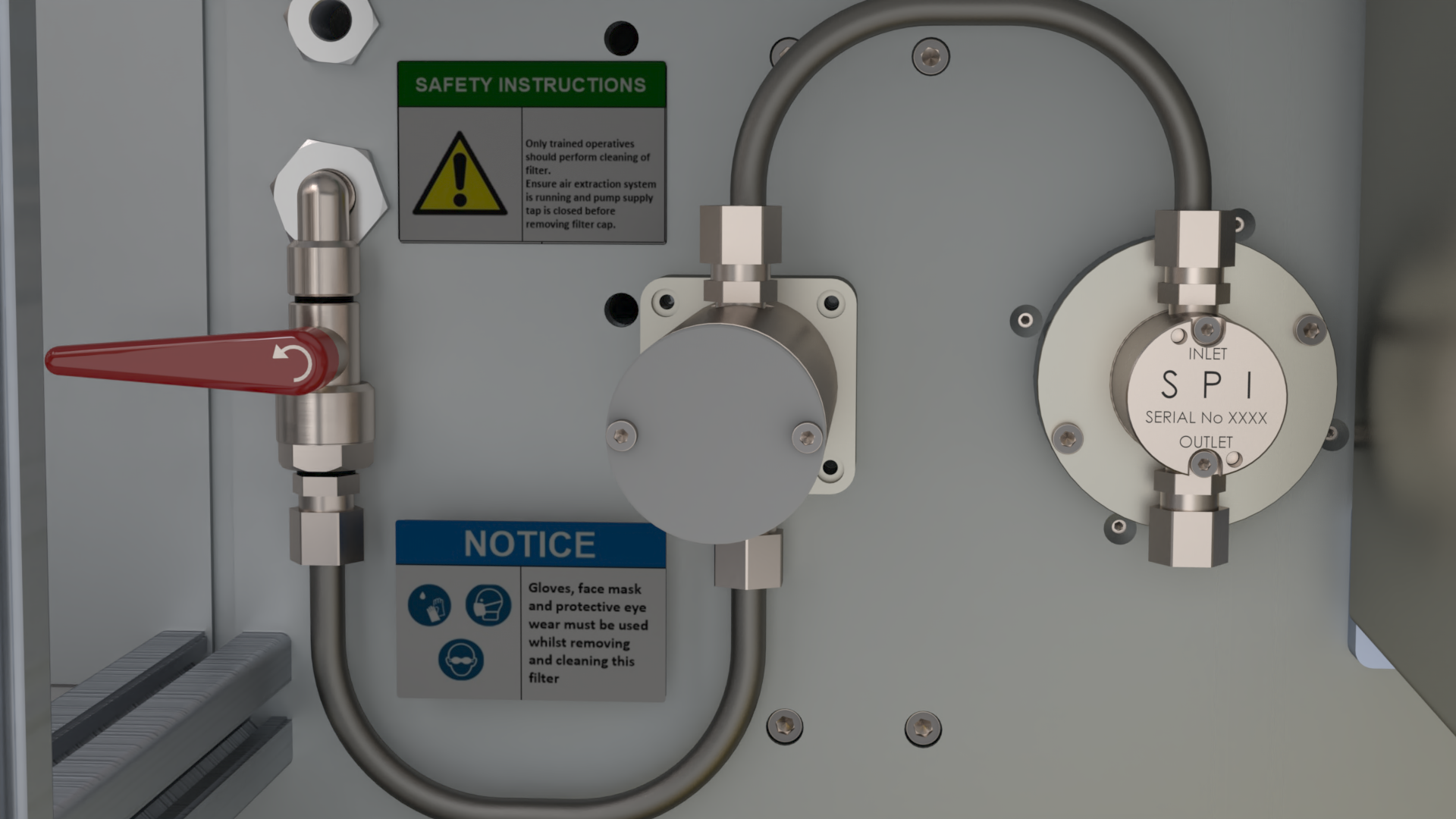

    Micro-precision gear pump, driven by a servo motor via a magnetic coupling ensuring high accuracy

    Fast and Consistent speed icon

    Fast and Consistent

    Speeds of up to 400m/min depending on flavour loading, remaining highly accurate regardless of speed

    High Quality Bobbins

    High Quality Bobbins

    The I-RWM conistently produces high quality bobbins, with adjustable rewind tension

    Highly Flexible System icon

    Highly Flexible System

    Customer specific application line patters, easily changed to suit different product specifications

    High Resolution HMI

    High Resolution HMI

    Modern HMI screen for machine control, clear operator interface and a platform for full datelogging

    Product information

    Product specifications

    Our IRWM systems are built to the highest standards and offer reliability with industry leading performance.

    Speed – 400 m/min
    Voltage – 480v 3phase & Neutral & Earth
    Reel width range – Max 150mm
    Heated Applicator – 0 – 50 degrees
    Rewind tension – 3 – 45N
    Flavour application Tolerances – +/- 5% (Adjustable)
    Tank Capacity – 100L total (50L theoretical)
    Air Supply – 4 – 6 Bar (<1L/Min)

    Tried, tested and trusted

    Our systems have been engineered for precision performance and fast installation.

    upto 6000
    sticks produced per minute
    1000+
    pump driven lines installed
    98%
    average system uptime

    Benefits
    of using SPI

    Proven performance across high-speed production lines.

    About us

    Consistent application accuracy icon orange

    Consistent application accuracy

    Eliminate sticky spillover and waste, improving product quality.

    Minimal downtime icon blue

    Minimal downtime

    Reduce stoppages with
easy-to-install modular units.

    High-speed integration icon blue magnifying glass

    High-speed integration

    Keep operations running with systems built for reliable performance.

    Process optimisation icon orange

    Process optimisation

    Control output with real-time
monitoring and data logging.

    Adaptable systems icon blue

    Adaptable systems

    Stay up to date with new product formats with future-ready systems.

    FAQs

    Here are the answers to the most common questions about our product range. If you can’t find what you’re looking for, get in touch with our team.

    Get a quote

    The I-RWM system is designed to apply menthol or flavour solutions during the rewinding process, ensuring precise and consistent dosing across high-speed production lines.

    Ready to improve menthol application accuracy and consistency?

    Speak to our engineers about configuring the I-RWM Intelligent Rewind Mentholator for your production line and application requirements.
